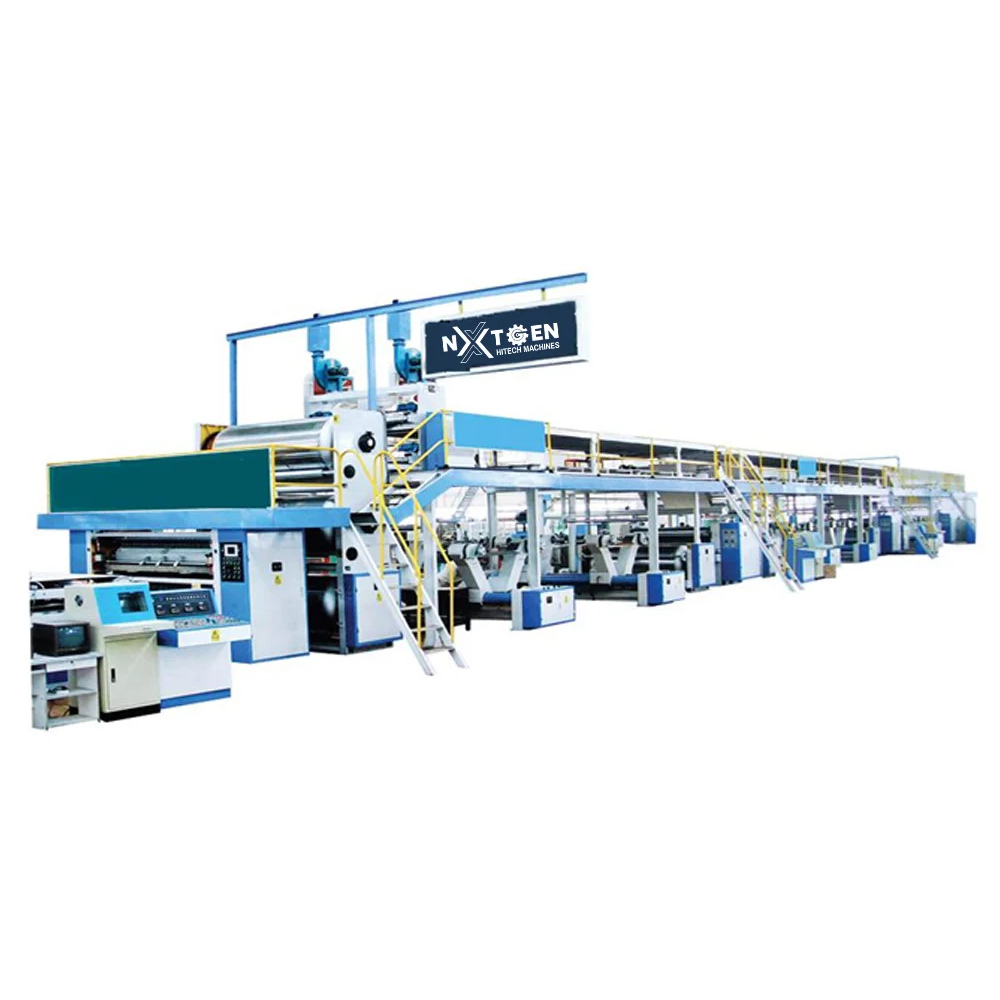

3 Ply Production Line

Description

Mill roll stand (mechanical and hydraulic shaftless is available)
Splicer (optional, it is used for high-speed production line)
Single facer
Preheater
Multi-preheater
Gluing machine
Double facer
Thin blade slitter scorer (simple type, up-down type, and computer control options)
NC cut-off (servo control, straight and helical)
Stacker and delivery machine
Paste making system
Accessories (air compressor, operation box, pipe)

Model	WJ120-1800
Effective Width	1800 mm
Working Speed	0–100 m/min
Steam Pressure & Consumption	Pressure: 1–1.3 MPa, Consumption: 2500–3200 kg/h
Air Pressure & Consumption	Pressure: 0.8–1.0 MPa, Consumption: 1.3 m³/min
Total Power	About 200 kW
Total Length	About 80 m (depends on base drawing)
Dimension	About 80 m × 4.3 m × 4.5 m (L × W × H)
