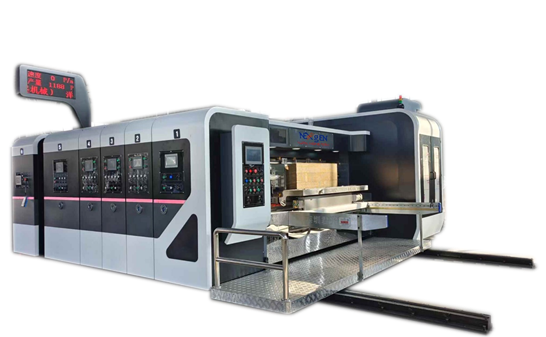

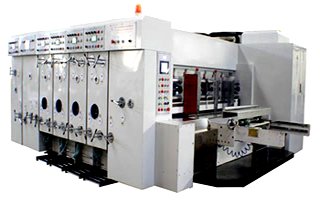

High Speed Automatic Flexo Printing & Slotting Machine

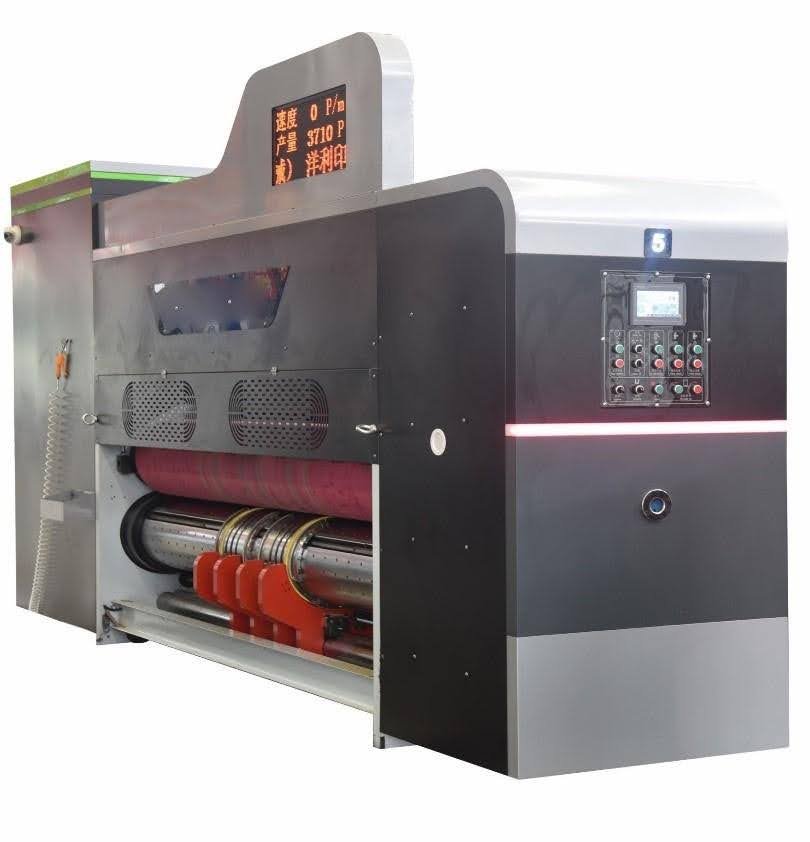

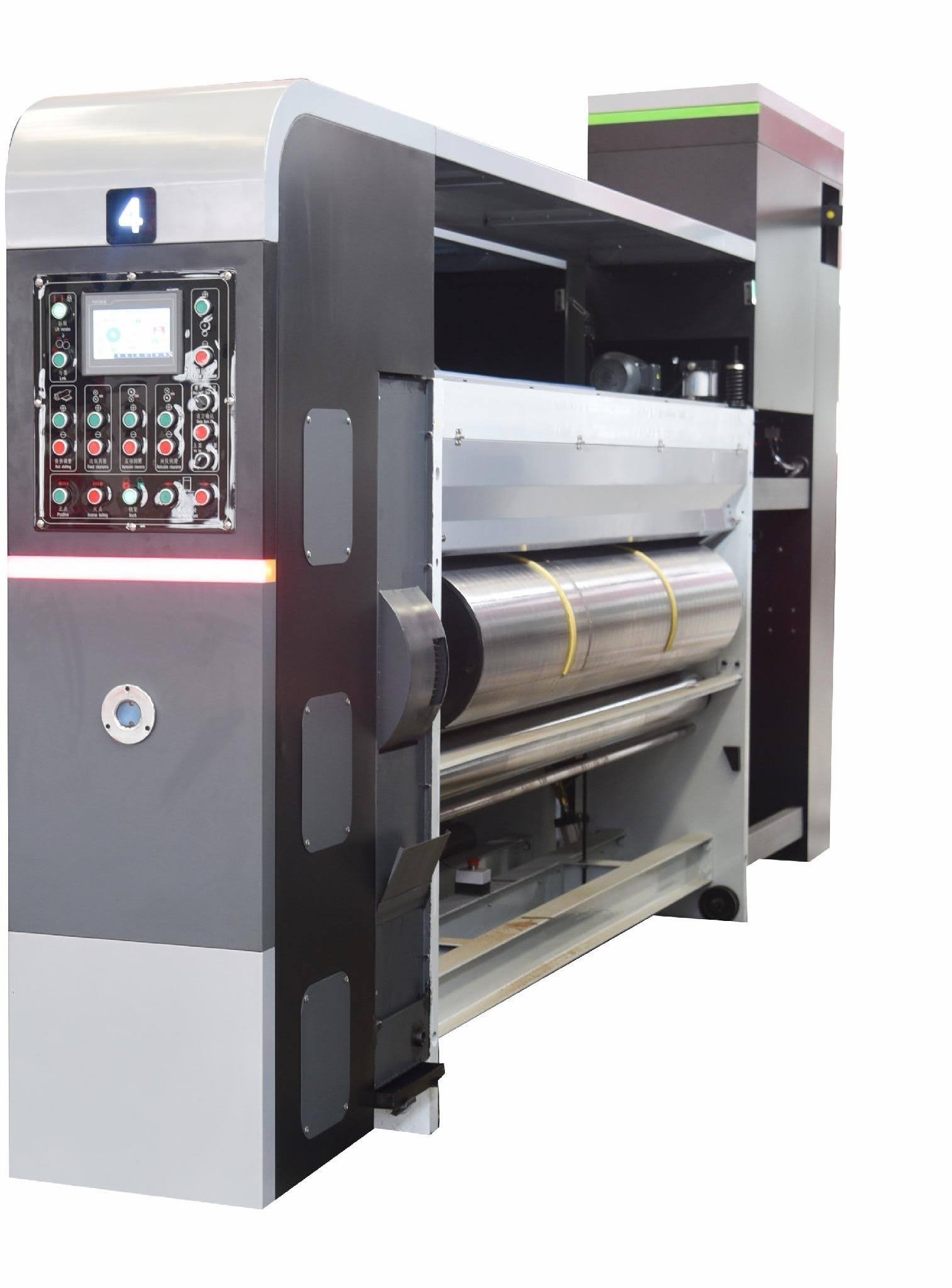

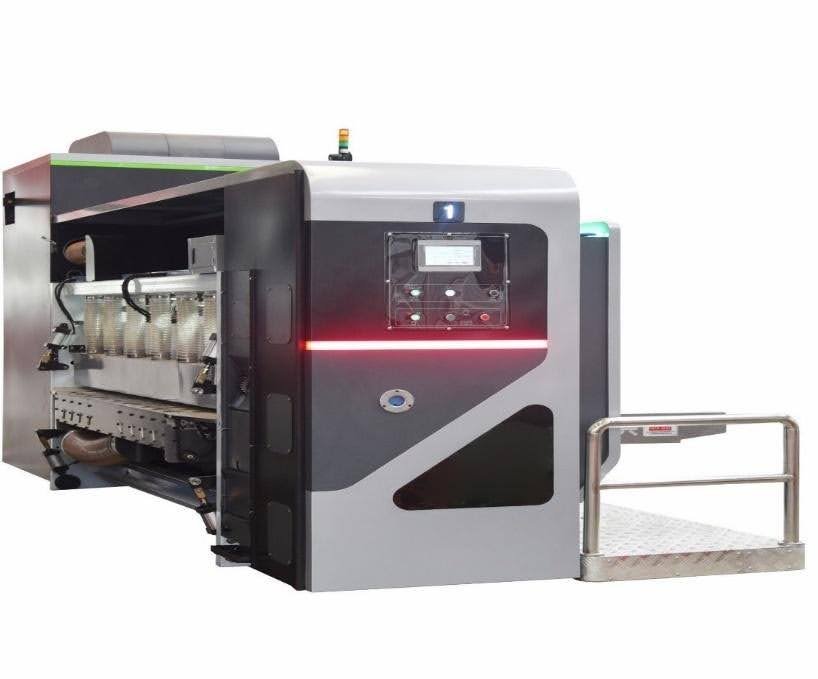

HIGH SPEED LEAD EDGE TWO COLOR PRINTING ROTARY DIE CUTTER WITH SLOTTING RING ATTACHMENT MACHINE

Main mechanical properties:

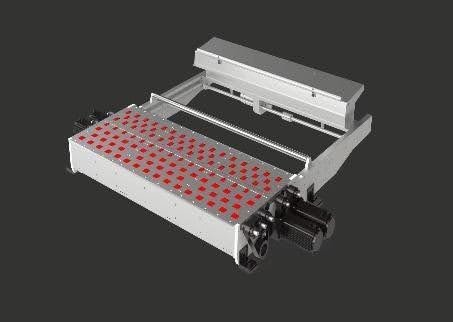

The product can complete the double-color printing, cutting, indentation, trimming, grooving, die cutting and other processes at one time. The front edge positioning automatic paper delivery mechanism, the air volume is adjustable, and the host frequency conversion control. The whole machine uses PLC and color display screen of the machine for multi-functional control, convenient, fast, flexible, can store orders unlimited, one key replacement. Phase adjustment through PLC electric adjustment; transmission gear adopts 40 Cr high quality alloy steel, carburizing quenching and fine grinding; wall panel is made of cast iron, thickness of 50mm without deformation. The hole processing adopts high precision large processing center, and the precision of the hole center can reach ± 0.01mm. The main drive gear and drive shaft enlarge the key, eliminate the wear of the center, keep the printing precision with a long life; the whole machine adopts electric split-closing, pneumatic locking, single combination, the characteristics of accurate color, exquisite printing patterns, convenient and easy to use and maintenance.
