Additional information
| Maximum board size | 2800×1515 mm |
|---|---|
| Minimum board size | 550 ×300 mm |
| Paper height | 900 mm |
| Nailing form | 30-120 mm |
| Nailing speed | 400 nails/min |
| Total power | 5 kw |
| Number of nails | 1-99 |
| Dimensions | 3300×2500×2000 |

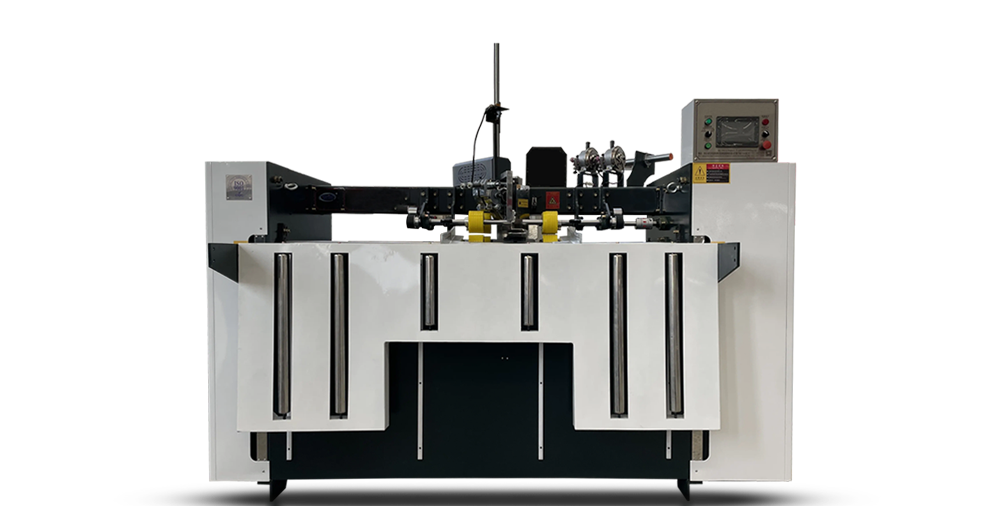

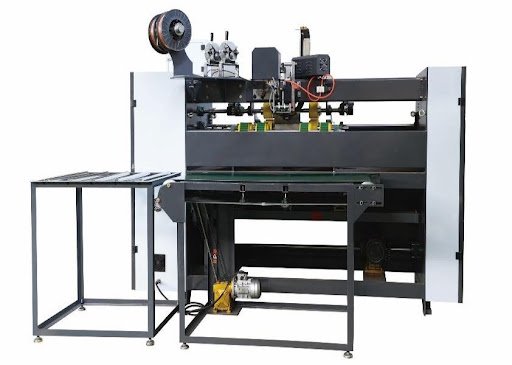

Semi Automatic Single Joint Stitching Machine
SEMI-AUTOMATIC STITCHING MACHINE
USE AND CHARACTERISTICS:
- Single & double strengthened nail are available
- Nailing from 30-120 mm, auto-calculated; servo motor controls the nailing by Delta, Japan.
- HD 5.7” color touch screen by E view, Taiwan
- PLC system and electrical devices by Siemens, Germany; photo-electricity switch and limit switch by autonics, Korea, high quality assured; the motor and reducer are made in Taiwan.
- The reamer of pinhead is made by tungsten steel of Germany. Machine is exactitude by special heat – treatment and numerical control system.
- Fully electrical controlled and it can change the size in less than one minute and handle easily without the relevant experience.
- Nailing speed : 400nails /min
- Number of Nails: 1-99
- Automatic counter in the latter part; deliver paper boxes in lot is fixed up for strapping.
- Total power : 6kw
- paper height : 900 mm / Dimensions:3300×2500×2000 mm
- For Cardboard : 3/5layers corrugated paper
- Wire size: 17# flat Yam (2.0×0.75)
