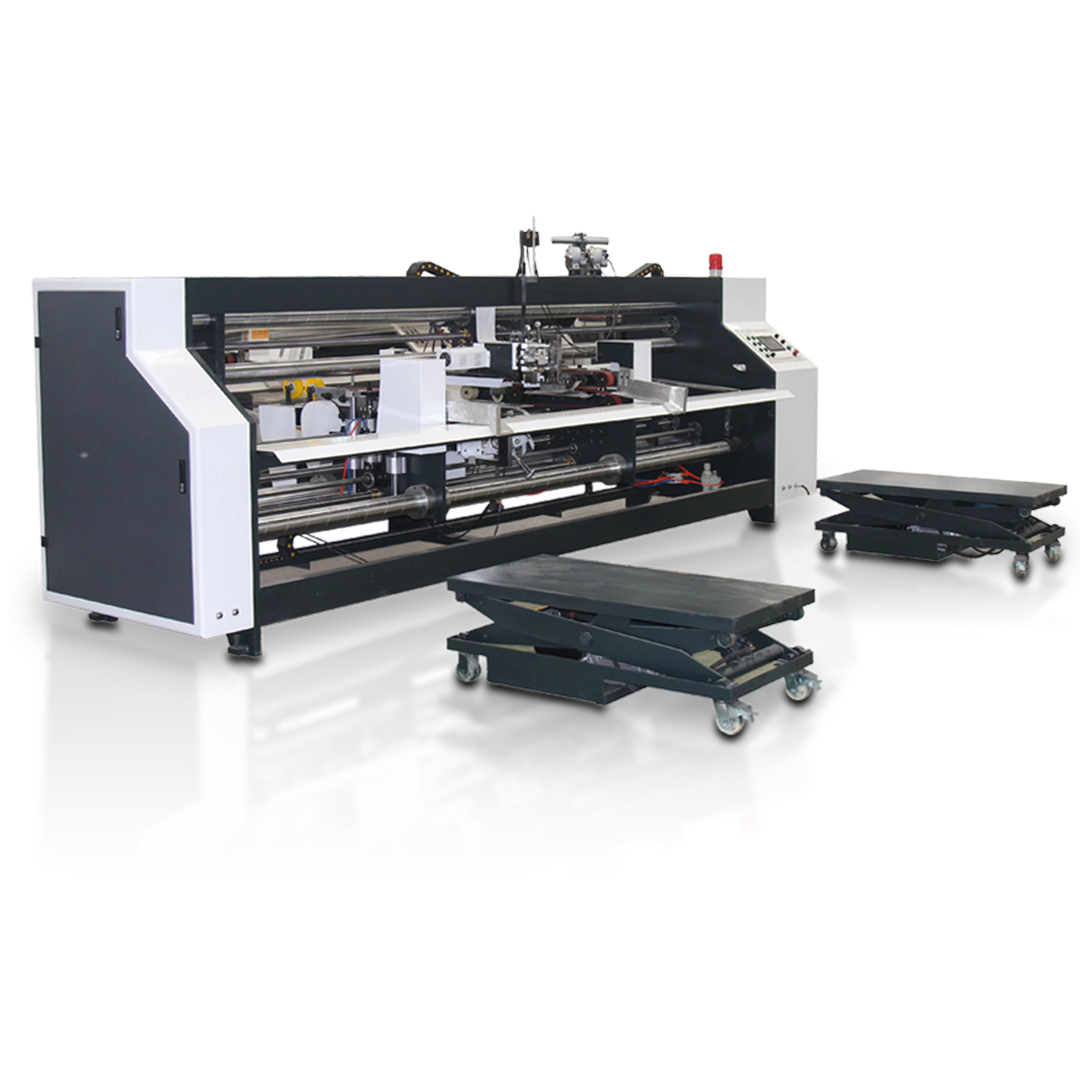

Single cum double joint stitching machine 4000mm
NXTG-4000D SEMI-AUTOMATIC DOUBLE JOINT STITCHING
Additional information
| SPEC | NXGN-4000D |
|---|---|
| Maximum (A+B )＊2 Max (mm) | 8000 |
| Minimum (A+B )＊2 Min (mm) | 12220 |
| Maximum Carton Length of A Max (mm) | 3850 |
| Minimum Carton Length of A Min (mm) | 430 |
| Maximum Carton Length of B Max (mm) | 4000 |
| Minimum Carton Length of B Min (mm) | 150 |
| （C+D+C） Max (mm) | 3200 |
| （C+D+C） Min (mm | 400 |
| Maximum Shake cap size C(mm) | 450(600) |
| Minimum Shake cap size C(mm) | 80,20,220 |
| Maximum Height D(mm) | 2000 |
| Minimum Height D(mm) | 200 |
| Maximum Nail Tongue Width(mm) | 40 |
| Pitch of Nails Number | 30-120 |
| Nail Speed(times/ min) | 600 |
| POWER | 9kw |
| Machine Weight | 4.6 Tonnes |
| Floor Space | 6000x42700x1750 |
