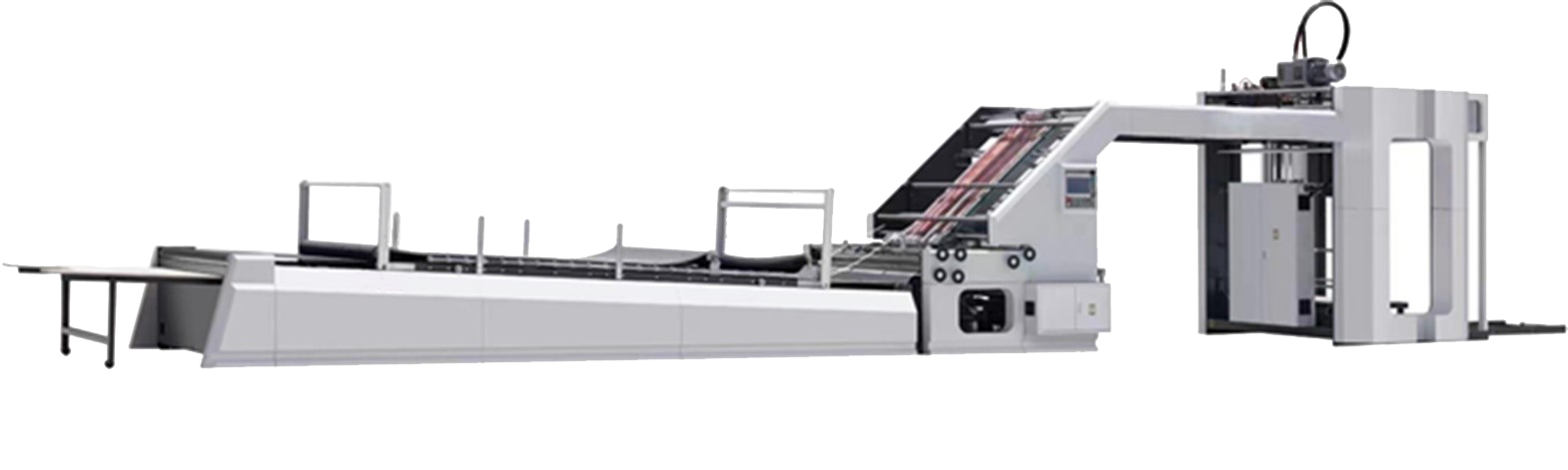

The NXGN HW series High Speed Automatic Flute Laminator is suitable for the lamination of printed cardboard paper with 3 ply or 5 ply corrugated sheet which is mainly used in food, beverage boxes etc.
The machine adopts chasing registration method with the help of imported low-voltage parts, liquid sensor and motion control system. The equipment adopts the perfect combination of motion control system and servo rectifying system, and uses multiple groups of photoelectric induction base paper relative position to control the two sides of the paper servo motor to do independent compensation work, only need to input paper size can be automatically completed adjustment equipment, operation and production.
| Max. Sheet Size (W*L) | 1650*1650mm |
|---|---|
| Min. Sheet Size (W*L) | 390*360mm |
| Thickness | Top Sheet: 150-600gsm |
| Laminating Accuracy | ±1mm1 |
| Max. Speed | 2000p/h 150m/min |
| Power | 26KW/415V |
| Height of Bottom Paper stacking | 400mm — skip feeding topping up system. |
| Height of Top Paper stacking | 1800mm – Total stacking vacuum sucker system |
| Weight | 7.5T |
| Dimension | L 16300mm x W 2400mm x H 2900mm |
| Servo | 5 Set |
