Description

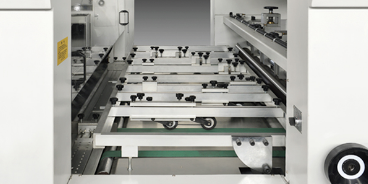

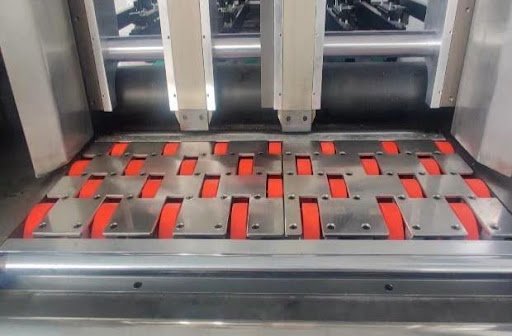

Feeding Section
* High-speed and precise lead edge feeder with high feeding accuracy, strong suction power, anti-slip performance, and stable transportation for various types of corrugated board.
* New technology polyester wheels with grid lifter and air cushion ensure smooth feeding and accurate alignment even when dealing with warped board
* Inverter-controlled fine vacuum suction adjustment accommodates wide stock range, from F flute to five-layer corrugate paper
* Electric side-pushing baffles (both the left and right sides)
* Independent or synchronous adjustment of left/right baffles.
* Slanted front baffle with fine-tuning (forward/backward + upward/downward) to reduce paper pressure and improve feeding smoothness.
* Left/right positioning push gauges ensure precise side positioning of the cardboard.
* Pallet height adjustment optimizes feeding based on paper thickness and quality, enhancing stability and smoothness.
* The fine-tuning device for the front baffle’s front and rear positions can be finely adjusted according to the gripper margin size.
* Non-stop feeding step adjustment.

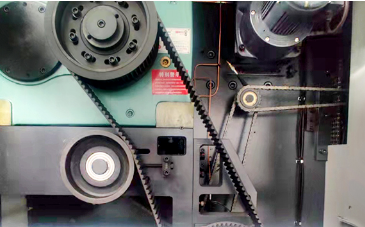

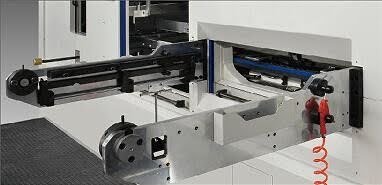

Die cutting section
* The entire machine casting is made of QT-700-2 nodular cast iron.
* A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure.
* The pressure regulating device enables precise pressure control via PLC touchscreen buttons.
* Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface.
* Die-cutting base plate and die mould rotary device.
* The connection between the die cutting plate and the chase adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate.
* The die-cutting chase and the lower mat are locked by the Japan SMC gas regulator, which can prevent improper locking of the upper frame caused by human error during installation.
* Japan SMC air pressure detection device with low-pressure alarm.
* Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine.
* The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil

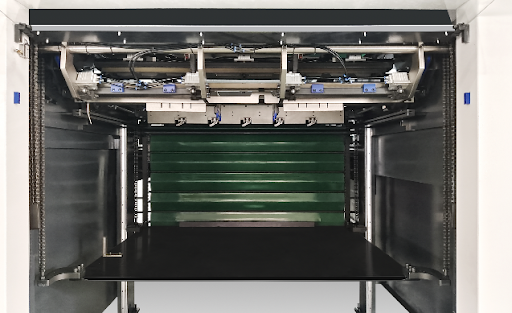

Delivery section
* Roll-up curtain type auxiliary paper delivery device, can realize non-stop paper delivery
* High pile stacking table adopts lifting device, paper delivery structure can pull the whole pile of paper out of the machine.
* Paper delivery alignment device
* Photoelectric detection of upper and lower limit switches can effectively prevent the paper stacking table from excessive paper pile stacking and paper curling up.
* Spring chain adjustment device: Adjusting the tension of spring chain can reduce the inertia impact during the steerings of the gripper bar, and maintain the balanced tension of the chain.
