Semi Automatic Double Piece Folder Gluer Hot & Cold

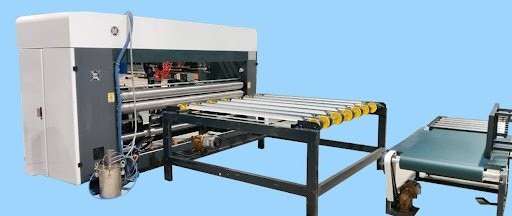

NXGN – DOUBLE PIECE CARTON GLUEING MACHINE

Introduction of main parts and functions of NXGN-type double adhesive machine

Use servo drive, precision accuracy, reducing the mechanical transmission part, which can effectively reduce the failure rate of the machinery.
The whole control system adopts Japan OMRON PLC control system.
The control box is full of contactor that adopts Siemens brand.
Intermediate relay adopts France Schneider, circuit breaker adopts Germany Siemens photoelectric switch and proximity switch adopts Japan Omron.
It takes only one minute to change the carton size, which greatly saves time and is easy to operate. he automatic glue box machine after the paragraph with the function of automatic counting
The finished cartons can be set according to the number (2-99) sub stack sent to the conveying machinery terminal, convenient bundling.

Category: Glueing Machine

Model and Parameter	NXGN-2000D
A+B）＊2 （mm）Maximum paper size	4000
（A+B）＊2 （mm） Min. Paper size	1180
A （mm）Max. carton lB （mm）Maximum carton widthength	1770
A （mm）Min. carton length	360
B （mm）Minimum carton width	1200
（C+D+C）mm Maximum Paper is High	1800
（C+D+C）（mm）Min. Paper High	450
C（mm） Maximum shake cap size	420
C（mm） Minimum shake cap size	80
D（mm)maximum height	1500
D（mm） Minimum height	150
Maximum nail tongue width(mm)	40
Paper feed height(mm)	900
Machine Weight (T)	3.5
Power(kw)	8
Dimension of equipment(mm)	360032701750
