Description
2 Power Blower
Digital Printing Machine

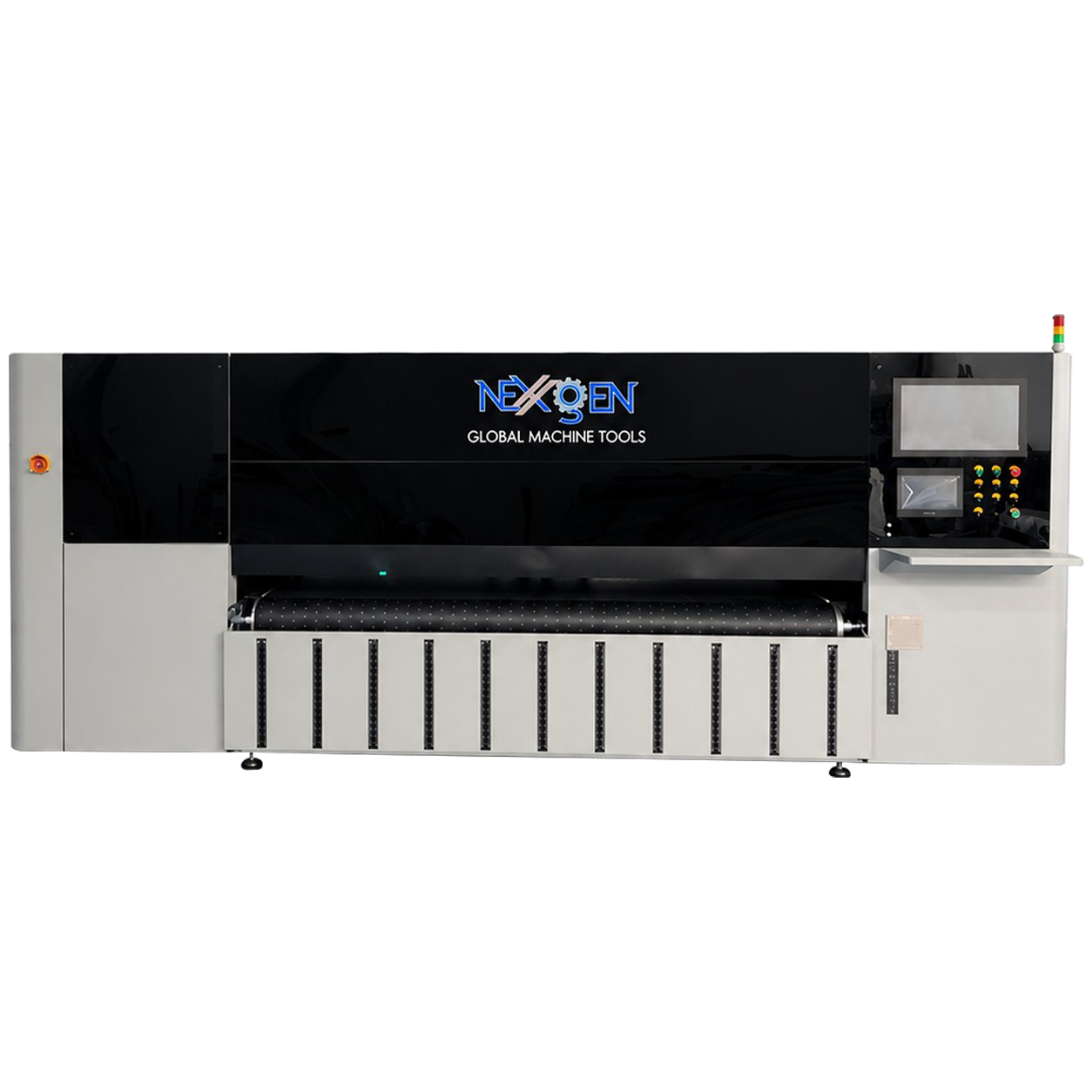

NXGN-1800- SINGLE PASS DIGITAL PRINTER
Additional information
| Model | NXGN-1800 |
|---|---|
| Equipment model | NXGN-1804HD1 |
| Printing size | 1050mm |
| Nozzle type | HD1 |
| Number of nozzles | 4 |
| Printing colors | C, M, Y, K |
| Printing height | 0-8CM (customizable) |
| Printing accuracy | 1200*300DPI, 1200*600DPI |
| Print modePrint speed - High speed | Direct exit one pass |
| Print speed - Medium speed | 25m/min |
| Print speed - Low speed | 20m/min |
| File format | 15m/min Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI |
| Equipment size | 4672mm × 2270mm × 1880mm |
| Equipment weight | 2500KG |
| Spray printing platform | Partition cellular suction platform |
| Media Type | Corrugated paper, cardboard boxes, paper bags and other paper products |
| Media size | Length: 2.0m × Width: 1.8m (customizable) |
| Ink type | Environmentally friendly ink |
| Work environment | Temperature: 20°C–32°C; Humidity: 40%–70% |
| Power supply requirements | 220V/AC (±10%) single-phase, three-phase, 50/60Hz, 15KW |
