Description
MAIN MECHANICAL FEATURES:

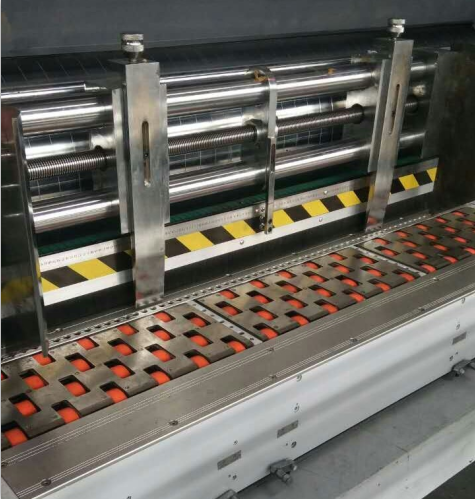

The product can complete the four color printing, cutting, indentation, trimming, grooving, die cutting, etc. Using the leading edge position automatic feeding mechanism, air volume adjustable, main engine frequency conversion control. The machine adopts PLC and color display screen to control the machine. It is convenient, quick and flexible. The phase adjustment is adjusted by digital display, automatically reset to zero and automatically reset. The transmission gear adopts 40Cr high quality alloy steel, material carburizing and quenching, fine grinding and processing; Wallboard is cast iron material, thickness 50mm, not deformation. The hole machining adopts high precision machining center, and the center distance accuracy can be up to 0.01mm. The main transmission gear and the transmission shaft adopt the way of tightening the free bond to enlarge the virtual position, cancel the wear of the center, and keep the printing precision of the printing press longer. The whole machine adopts electric separation, pneumatic locking, single machine binding, and overprinting. The machine has the advantages of accuracy, fine print design, easy to use and maintenance.
